GFCI vs AFCI: which protection your Grand Rapids home needs, and where

GFCI: protecting people from shock

A ground-fault circuit interrupter compares the current going out on the hot wire with the current coming back on the neutral. If some is missing, it is leaking somewhere, possibly through a person, and the device cuts power in a fraction of a second. That is why GFCIs belong where water and electricity meet: kitchen counters, bathrooms, laundry areas, garages, unfinished basements and every outdoor receptacle.

GFCI protection can be a receptacle with test and reset buttons, which also protects outlets wired after it, or a GFCI breaker that protects the whole circuit from the panel.

AFCI: protecting the house from fire

An arc-fault circuit interrupter watches for the electrical signature of arcing: a damaged cord pinched behind furniture, a nail through a cable, a loose connection heating up. Those arcs can start fires inside walls without ever tripping an ordinary breaker. AFCI protection is expected on bedroom and most living-space circuits under current code.

AFCI protection is usually a breaker in the panel. In some older panels, where no compatible AFCI breaker exists, receptacle-type devices at the first outlet are the alternative.

Where both are needed

Some locations, such as kitchens and laundry areas, need both kinds of protection. A dual-function breaker combines GFCI and AFCI in one device, which keeps the panel tidy. Older Grand Rapids homes, many of which predate both technologies, often have neither, which is why home-sale inspection reports so often flag missing protection.

Adding protection to an older house

Bringing an older Grand Rapids house up to current protection does not have to happen all at once. The usual order is kitchen counters and bathrooms first, because that is where shock risk is highest, then garage, basement and outdoor receptacles, then arc-fault protection on bedroom circuits. Each step is priced on its own, so the work can follow your budget.

Before AFCI breakers go in, an electrician checks each circuit for shared neutrals and old splices. Skipping that step is the main reason new AFCIs trip constantly in older homes and get blamed for problems that were already there.

Why they trip

Most trips are real. GFCIs trip on moisture in outdoor boxes, failing appliances and damaged cords. AFCIs trip on damaged cords, loose connections and, in older houses, shared neutrals left behind by earlier wiring work. Some older AFCI models were also prone to nuisance trips with certain motors.

The wrong response is to remove the device. The right one is to find the cause; our GFCI and AFCI upgrades page explains how those faults are traced.

Testing your devices

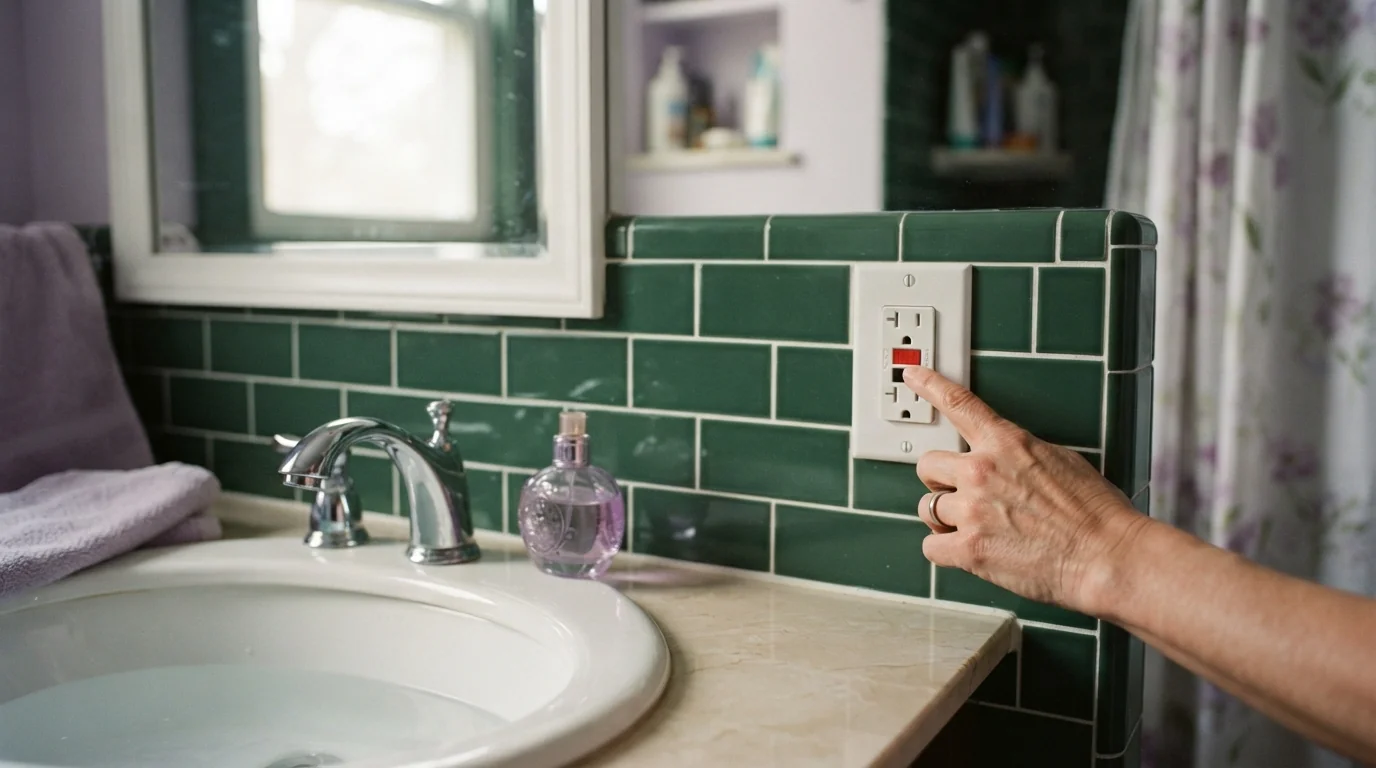

Press the test button on each GFCI receptacle monthly; it should click off, and reset should restore power. AFCI and GFCI breakers have test buttons too. A device that will not trip on test, or will not reset, needs replacing. Label which outlets are protected by which GFCI so a trip in the garage does not leave you hunting for the reset button in the basement.

Protected outlets that stop working are often just downstream of a tripped GFCI in another room, which is the most common cause of a dead outlet.
