Heat pump and mini-split electrical work for Grand Rapids homes
A heat pump moves more of your heating load onto the electric panel, and in a Grand Rapids January that load runs for hours. We size the circuits, check that the service can carry the new demand, fit the outdoor disconnects and wire any backup heat strips so the system your HVAC contractor sets runs the way it was designed.
Updated September 2026
- Answered 24/7
- Load check before wiring
- Disconnects at every unit
- Backup heat circuits
Quick answer
Heat pump and mini-split electrical work in Grand Rapids covers a load calculation on the existing service, dedicated circuits sized to the equipment nameplate, an outdoor disconnect within sight of each unit, and circuits for electric backup heat strips, all coordinated with the HVAC installer.
What this job is
The electrical side of a heat pump install
HVAC contractors set the equipment and run the refrigerant lines; the wiring that feeds it is electrical work with its own permit and inspection. Most heat pump problems we see in the first winter are not the heat pump at all. They are an undersized circuit, a backup heat strip that was never connected, or a panel that was already near its limit before a second large load arrived.
We coordinate with your HVAC installer on the panel capacity question, the circuit sizes from the equipment data plate and the timing of the inspection, so the system is wired, inspected and ready on start-up day.
Cost factors
What moves the price on this job
The existing service, the backup heat and the number of units decide most of the electrical cost.
Electrician labor runs about $75 to $150 per hour in regional cost guides, and a permit adds about $50 to $300; these are planning figures, not our price.
- 01
Service capacity
A full 100-amp service may need load management or an upgrade.
- 02
Backup heat size
Larger strip heaters need larger circuits.
- 03
Number of units
Each mini-split condenser needs its own circuit.
- 04
Distance to the panel
Longer runs need more and larger wire.
- 05
Outdoor mounting
Wall brackets and pads change the whip route.
- 06
Panel space
A crowded panel may need rework.
- 07
Permit
New circuits are permitted and inspected.
What is included
What the heat pump wiring covers
- Load calculation on the existing service
- Dedicated circuit for the outdoor unit
- Outdoor disconnect within sight of the unit
- Circuits for the air handler and backup heat strips
- Separate circuits for each mini-split condenser
- Low-voltage control wiring coordination
- Breaker sizing from the nameplate data
- Permit, inspection and labeled panel
- Power verified before start-up
Choosing between them
Heat pump setups and what they need electrically
| Setup | Electrical need | Watch for |
|---|---|---|
| Ducted heat pump with air handler | Outdoor unit circuit plus air handler and strip heat | Strip heat can be the largest load in the house |
| Single-zone mini-split | One dedicated circuit and a disconnect | Usually fits an existing panel |
| Multi-zone mini-split | Larger circuit for one condenser feeding several heads | Panel space and wire size |
The versions of this job
Load check before the heat pump arrives
Before any wire is run, we total the loads already on your service and add the heat pump, air handler and backup heat at their nameplate ratings. Many Grand Rapids homes still have 100-amp service, and a heat pump with electric strip heat can push that past what the service can carry. The answer may be a simple circuit, load management, a dual-fuel setup that keeps the gas furnace for the coldest nights, or a service upgrade. Knowing which before the equipment is ordered avoids an expensive surprise on install day.
Outdoor disconnects and circuits

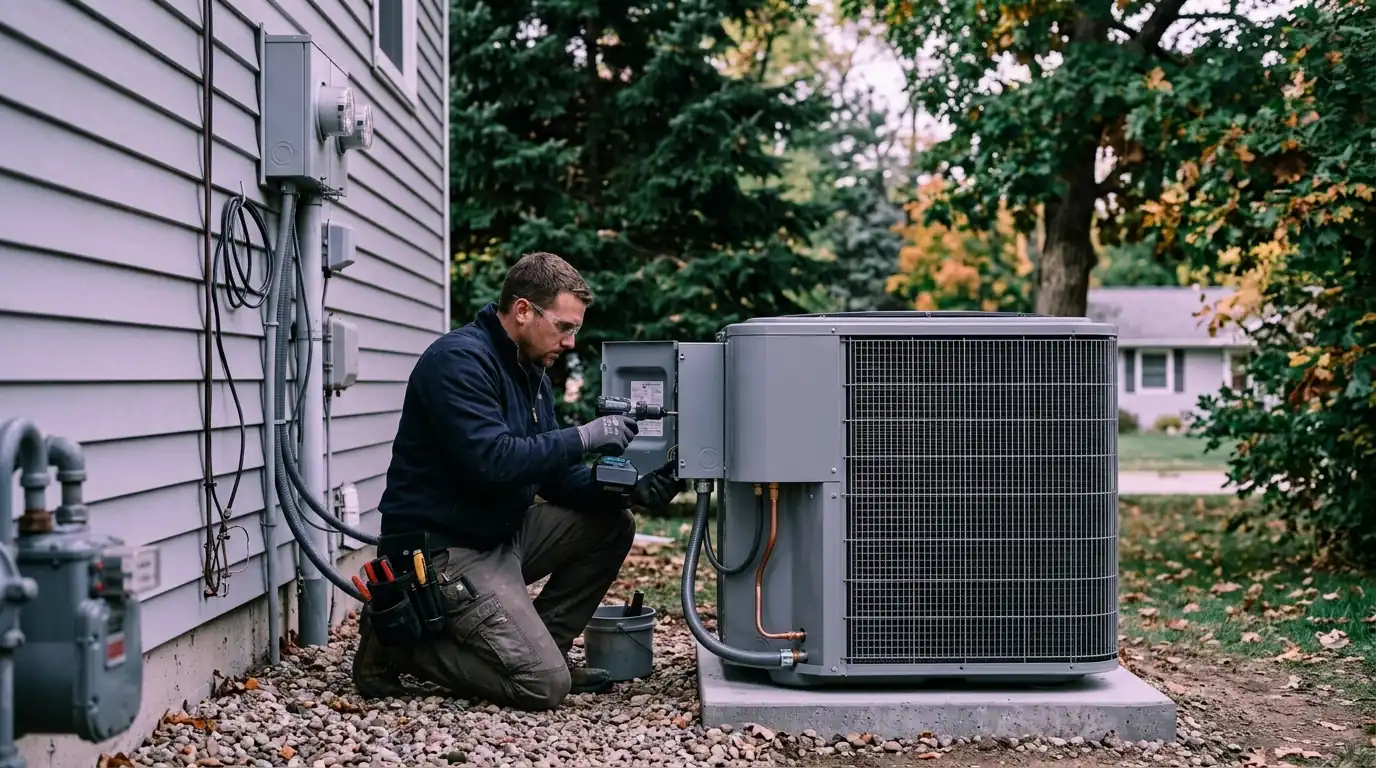

Code requires a disconnecting means within sight of the outdoor unit so a technician can shut it off safely while working on it. We mount a fused or non-fused disconnect sized to the equipment, run the circuit in weather-rated conduit and whip, and size the breaker from the nameplate rather than a guess. On mini-splits we run each condenser on its own circuit and keep the line set and the power whip tidy so the next service visit is easy and the wall stays sealed against wind and snow.
Backup heat strips
Most ducted heat pumps carry electric resistance strips in the air handler that run when the outdoor unit cannot keep up or is defrosting. Those strips are often the biggest single load in the house, sometimes 10 kW or more, and they need their own correctly sized circuits. We confirm the strip size with your HVAC installer, wire it on dedicated breakers and test that it engages. A strip that was never connected, or connected on an undersized circuit, is the most common reason a new heat pump leaves a house cold in January.
Mini-splits for additions and cold rooms
Ductless mini-splits are a common fix for a finished attic, a home addition or a bedroom over the garage that the furnace never reached. A single-zone unit usually needs one dedicated 240-volt circuit and a disconnect, and it usually fits an existing panel. Multi-zone systems put several indoor heads on one larger condenser circuit. We plan the circuit route, the disconnect location and the panel space with you, then coordinate the schedule with the HVAC installer so the walls are opened once. We also confirm each head's condensate line and power whip stay clear of each other at the wall.
Local conditions
What we see around Grand Rapids
January is Grand Rapids' coldest month, with an average high of 31 degrees F and an average low of 17 degrees F. At those temperatures a heat pump runs long cycles and leans on its backup heat during defrost and the coldest hours, so the circuits feeding it work hardest exactly when nobody wants to be without heat. We size backup heat circuits for those hours, not for a mild October afternoon.
How the job runs
How a heat pump wiring job runs
Load check
Existing service plus new equipment.
Coordinate
Equipment sizes and dates with the HVAC installer.
Permit
Pulled before wiring starts.
Wire
Circuits, disconnects and backup heat.
Inspect
Rough and final where required.
Start-up support
Power verified before the system runs.
Straight answers
Questions about heat pump and mini-split electrical in Grand Rapids
Still unsure? Call (616) 699-4794 and ask a technician.
Often a mini-split, sometimes a ducted unit; strip heat is what usually decides it.
Yes, a disconnect within sight of the outdoor unit is required.
The equipment is HVAC work; the circuits and disconnects are electrical work.
A disconnected or undersized backup heat circuit is a common cause.
Indoor heads usually share the condenser's circuit; each condenser needs its own.
